The SCOTT E-SUB Active makes getting around town easier. With comfortable geometry, a 400wh Shimano STEPS battery and an integrated carrier, the E-SUB Active is the ideal commuter bike.
The SCOTT E-SUB Active makes getting around town easier. With comfortable geometry, a 400wh Shimano STEPS battery and an integrated carrier, the E-SUB Active is the ideal commuter bike.
Scott

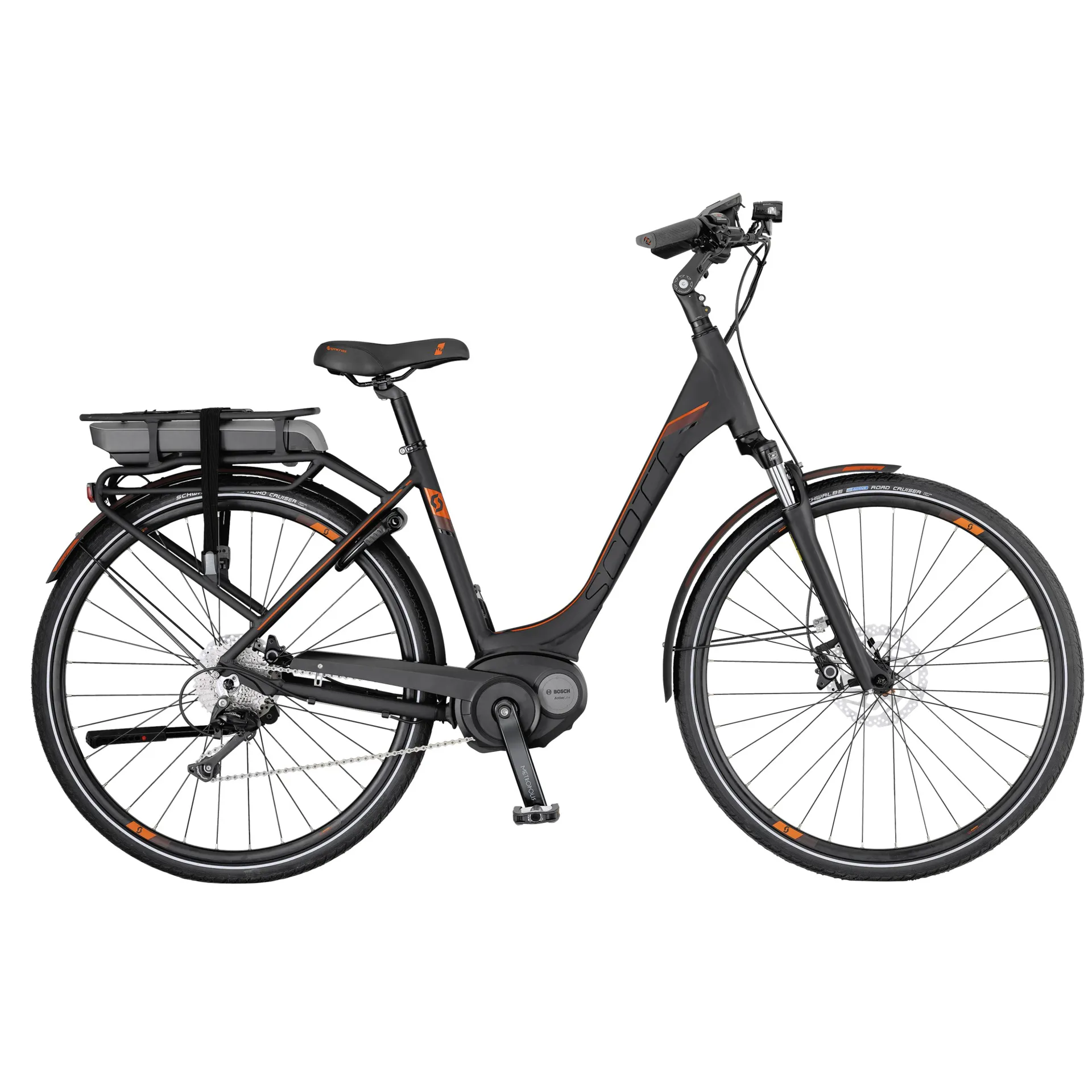

Scott E-Sub Active Unisex 2017 Electric Hybrid Bike

£1,999.00 £2,099.00 5% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Scott E-Sub Active Unisex 2017 Electric Hybrid Bike

Season:2017

Brand:Scott

Code:249773

The SCOTT E-SUB Active makes getting around town easier. With comfortable geometry, a 400wh Shimano STEPS battery and an integrated carrier, the E-SUB Active is the ideal commuter bike. The E-SUB Active is ready to provide many kilometers of worry free reliability. Available in Unisex geometries.

Technical Information
  • FRAME

    E-SUB 6061 Alloy with integrated carrier
  • E.DRIVE SYSTEM

    Bosch Active 250w System
    w/ 400wh battery pack / Intuvia display
  • FORK

    Suntour NEX HLO, w/ Lockout
  • HEADSET

    VP semi integrated
  • REAR DERAILLEUR

    Shimano Deore RD-T610-SGS 10 Speed
  • SHIFTERS

    Shimano Deore SL-T610
  • BRAKE LEVERS

    Shimano BR-M315 Disc
  • BRAKES

    Shimano BR-M315 Disc
  • CRANKSET

    FSA Metropolis 18T
  • HANDLEBAR

    Syncros UC3.0 / 35° / 25mm rise
  • H'STEM

    JD-ST103 Aadjustable angle
  • PEDALS

    VP 613
  • SEATPOST

    HL SP-371 Suspension Seatpost
  • SEAT

    Velo VL-6339
  • HUB (FRONT)

    Shimano HB-TX50 CL
  • HUB (REAR)

    Shimano FH-TX50 CL
  • CHAIN

    KMC X10
  • CASSETTE

    Shimano CS-HG50-10 11-36 T
  • SPOKES

    Sapim double butted
  • RIMS

    Rodi
  • TIRES

    Schwalbe Road Cruiser 700x42c
  • LIGHTS

    Front: AXA Blueline
    Rear: AXA Blueline Steady
  • RACK & FENDERS

    Spring clamp, Metasol wide fenders
    Ursus kickstand
  • EXTRAS

    Abus Pro Tectic Frame / Battery Lock
  • APPROX WEIGHTS IN KG

    25.20
  • APPROX WEIGHTS IN LBS

    55.56
Sizing Information
  S   M   L
HEAD TUBE ANGLE 70.0 °   70.0 °   70.0 °
HEAD TUBE LENGTH 185.0 MM 7.3 IN 185.0 MM 7.3 IN 185.0 MM 7.3 IN
TOP TUBE HORIZONTAL 555.0 MM 21.9 IN 570.0 MM 22.4 IN 595.0 MM 23.4 IN
STANDOVER HEIGHT 647.1 MM 25.5 IN 645.6 MM 25.4 IN 646.7 MM 25.5 IN
BB OFFSET -65.0 MM -2.6 IN -65.0 MM -2.6 IN -65.0 MM -2.6 IN
BB HEIGHT
WHEEL BASE 1,123.0 MM 44.2 IN 1,123.0 MM 44.2 IN 1,148.0 MM 45.2 IN
BB CENTER TO TOPTUBE CENTER
BB CENTER TO TOP OF SEATTUBE 440.0 MM 17.3 IN 480.0 MM 18.9 IN 520.0 MM 20.5 IN
SEAT ANGLE 73.0 °   73.0 °   73.0 °
CHAINSTAY 480.0 MM 18.9 IN 480.0 MM 18.9 IN 480.0 MM 18.9 IN
REACH 360.7 MM 14.2 IN 375.7 MM 14.8 IN 400.7 MM 15.8 IN
STACK 635.5 MM 25.0 IN 635.5 MM 25.0 IN 635.5 MM 25.0 IN
STEM LENGTH 110.0 MM 4.3 IN 110.0 MM 4.3 IN 110.0 MM 4.3 IN
TRAIL
