The all NEW SCOTT E-Aspect 710 Series features proven electric assist technology in a comfortable off-road package. Powered by a 508wh Brose drive system, the E-Aspect will give you hours of trail riding energy.
The all NEW SCOTT E-Aspect 710 Series features proven electric assist technology in a comfortable off-road package. Powered by a 508wh Brose drive system, the E-Aspect will give you hours of trail riding energy.
Scott

Scott E-Aspect 710 2017 Hardtail Electric Mountain Bike

£3,499.00 £3,699.00 5% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

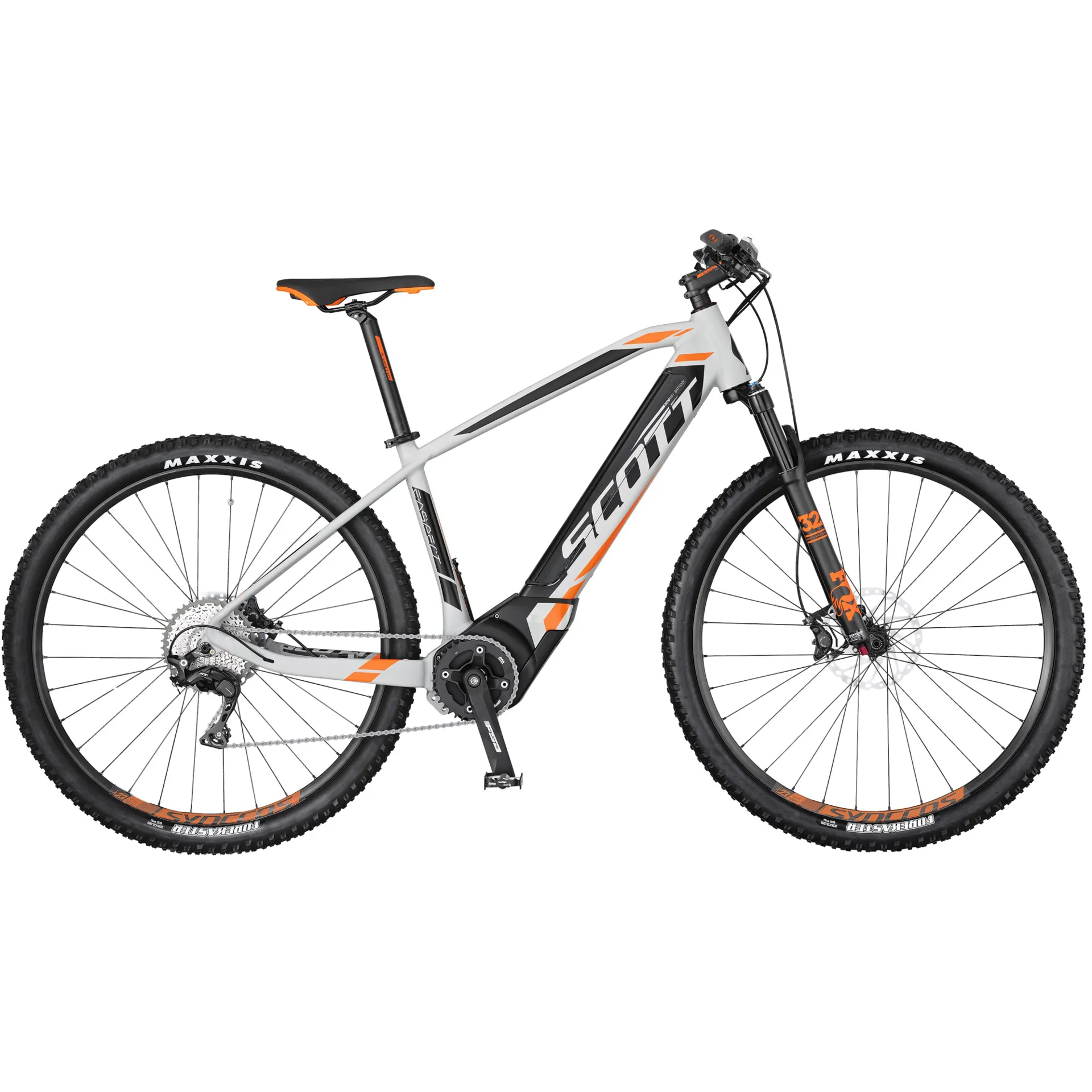

Scott E-Aspect 710 2017 Hardtail Electric Mountain Bike

Season:2017

Brand:Scott

Code:249756

The all NEW SCOTT E-Aspect 710 Series features proven electric assist technology in a comfortable off-road package. Now with an integrated battery, and powered by a 508wh Brose drive system, the E-Aspect will give you hours of trail riding energy.
Available in the 27.5" and 29" wheel size.

Technical Information
  • FRAME

    E-Aspect 700 / 6061 Alloy custom butted tubing
    integrated Battery / internal cable routing / IDS SL dropout
  • E.DRIVE SYSTEM

    Brose System 250W
    508wh integrated Battery / remote Display
  • FORK

    FOX Fork 32 Float Performance Air
    Grip3 / 3 Modes / Remote lockout / Tapered Steerer
    100mm travel / SCOTT Ride Loc Remote
  • HEADSET

    Syncros OE / Tapered 1.5" - 1 1/8"
    semi integ. OD 50/61mm / ID 44/55mm
  • REAR DERAILLEUR

    Shimano XT RD-M8000-GS
    DM / Shadow Plus / 11 Speed
  • SHIFTERS

    Shimano SLX SL-M7000 / Rapidfire Plus
    2 way release / Ispec 2 clamp
  • BRAKES

    Shimano SLX-M7000 Disc
    180 F+ R SM-RT64 CL Rotor
  • CRANKSET

    FSA CK-746 MTB 36T
  • HANDLEBAR

    Syncros M3.0 720mm / 31.8mm / 9° / 12mm rise
    Syncros Lock On Grip
  • H'STEM

    Syncros M3.0
  • PEDALS

    Wellgo M-248DU
  • SEATPOST

    Syncros M3.0 / 31.6mm
  • SEAT

    Syncros M3.0
  • HUB (FRONT)

    Shimano HB-M618
  • HUB (REAR)

    Shimano FH-M618
  • CHAIN

    Shimano CN-HG601-11
  • CASSETTE

    Shimano CS-M8000-11 11-46 T
  • SPOKES

    DT Swiss Champion
  • RIMS

    Syncros X-23 Disc / 32h
Sizing Information
  S   M   L
HEAD TUBE ANGLE 68.5 °   68.5 °   68.5 °
HEAD TUBE LENGTH 140.0 MM 5.5 IN 145.0 MM 5.7 IN 155.0 MM 6.1 IN
TOP TUBE HORIZONTAL 580.0 MM 22.8 IN 600.0 MM 23.6 IN 620.0 MM 24.4 IN
STANDOVER HEIGHT 766.3 MM 30.2 IN 790.3 MM 31.1 IN 822.7 MM 32.4 IN
BB OFFSET -50.0 MM -2.0 IN -50.0 MM -2.0 IN -50.0 MM -2.0 IN
BB HEIGHT 307.5 MM 12.1 IN 307.5 MM 12.1 IN 307.5 MM 12.1 IN
WHEEL BASE 1,111.5 MM 43.8 IN 1,131.9 MM 44.6 IN 1,152.7 MM 45.4 IN
BB CENTER TO TOPTUBE CENTER
BB CENTER TO TOP OF SEATTUBE 400.0 MM 15.7 IN 440.0 MM 17.3 IN 490.0 MM 19.3 IN
SEAT ANGLE 73.0 °   73.0 °   73.0 °
CHAINSTAY 452.0 MM 17.8 IN 452.0 MM 17.8 IN 452.0 MM 17.8 IN
REACH 390.6 MM 15.4 IN 406.2 MM 16.0 IN 426.3 MM 16.8 IN
STACK 619.6 MM 24.4 IN 624.2 MM 24.6 IN 633.5 MM 24.9 IN
STEM LENGTH
TRAIL
